Reader MF5
\RFID Reader
\Products groups

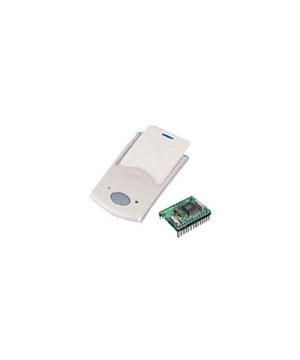

Reader MF5

Features:

  1. Frequency: 13.56 MHz
  2. Read / Write ISO 14443A ; Mifare® Class and Mifare® PRO Standard cards
  3. Fast data transfer
  4. High data integrity
  5. True anticollision
  6. MF5 read / write module for handy terminal or custom-built.

Specifications:

  1. Major feature Feature: Read / Write Module
  2. RF Frequency: 13.56Mhz
  3. RF Distance: Depend on antenna
  4. DC Power: 5V / 100mA
  5. RS232: 19200,N,8,1
  6. Interface : RS232 TTL
  7. Protocol : GNET PLUS
  8. Card Type : ISO 14443A Mifare® Class Mifare® PRO
  9. Memory : No
  10. Dimension (mm) : W26 x L36 x H11
  11. Housing : No
  12. Weight : 10g
  13. Operating temperature : -10 to 60 Deg C
  14. Operating relative humidity : 10 ~ 90%

Mifare® Class: Ultra-Light; Standard 1K; Standard 4K
Note: The Specification is subject to change without notice.
