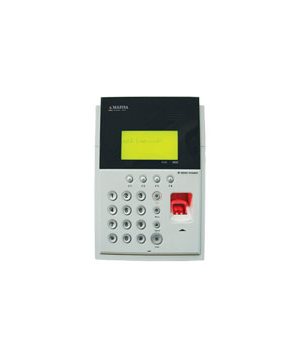

MHS NAC3000
\Biometric
\Products groups
MHS NAC3000
  1. Manage access of a large number of people.
  2. Easy remote control of terminals
  3. Combine several authentication types (fingerprint, password, and RF card).
  4. Real-time monitoring of access status
  5. High speed 1:N authentication is available
  6. Access control by period and time
  7. Enhanced user convenience (short ID /group ID authentication and Auto-on).
  8. Provide various additional features including user access lookup and interphone
 Specification:

Section
Content
LCD
Display
Size
128 * 64 Dots LCD
Language
English, Korean, Chinese, Iran
Fingerprint
Sensor
Type
Optical
Resolution
500 DPI
Additional
Auto on / Latent Image check
Authentication
Type
Fingerprint, Password and RF card (optional)
Speed
( FP )
1:1 mode: T < 1 sec.
1:N mode: Avg. 2.5sec( 1,000FP , Server )
Avg. 2sec ( 500FP, Terminal )
Avg. 1sec ( 300FP, Terminal )
* Pentium? 1.GHz, 512MB RAM
Algorithm
FRR: 0.1 % or less, FAR: 0.001 % or less
Number of
users to
register
Server
5,000 users (2 fingerprints per 1 user)
10,000 users (1 fingerprint per 1 user)
Terminal
2,000 users (2 fingerprints per 1 user)
4,000 users (1 fingerprint per 1 user)
Communication
TCP/IP
10 base-T Ethernet
RS-232C
Max 115200 bps (optional)
Wiegand
26 bit, 34 bit mode (output only)
* ID length : 4digit
Server
Connection
Terminal
Connection allowed up to 255 terminals
Client
Simultaneous access up to 8 clients
Size
Case
135 (W)*45 (L)*202.5 (H) mm
Bracket
102.4 (W)*26.6 (L)*157.5 (H) mm
Supported
doors
Deadbolt / Strike / EM Lock / Auto door
Power
Adaptor
Input: AC 100 V ~ 240 V, 50/60 Hz
Output: DC 12 V, 3 A
Additional
features
Interphone
MIC and Speaker included
Voice instruction (English / Korean)
Alarm Buzzer
Downloading Logo / Firmware
Variable ID length ( 4 ~ 15 Digit)
Option
UPS (2.9Ah)
RF Module (HID)
Temperature
Operating
-20? ~ 60? ( With no icing or condensation)
