DH248L-110

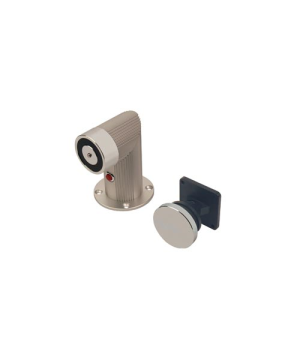

DH-2448L110 Electromagnetic Door Holder

Specifications :

  • Voltage Input : 24 VDC / 48 VDC
  • Current Draw : 24V / 100mA ; 48V / 50mA (±5%)
  • Holding Force : Up to 110 lbs (50 kg)
  • Anti-Rust Surface Treatment : Blue Zinc Plating
  • Operating Temperature : 0~55° C ( 32~131° F)
  • Operating Humidity : 0~95% ( non condensing)
  • Weight : 0.6 kg (±1%)
  • Dimensions :
    Magnet – (Hori)140mm,(Verti)110mm
    Armature – (?)55x(T)8 mm
