DH1224L-220

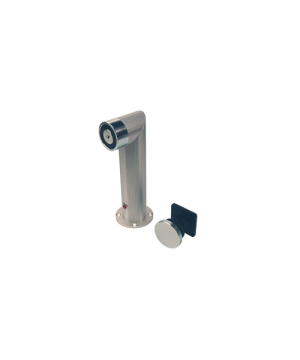

DH-1224L220 Electromagnetic Door Holder

Specifications:

  • Voltage Input : 12 VDC / 24 VDC
  • Current Draw : 12V / 80mA ; 24V / 40mA (±5%)
  • Holding Force : Up to 110 lbs (50 kg)
  • Anti-Rust Surface Treatment : Blue Zinc Plating
  • Operating Temperature : 0~55° C ( 32~131° F)
  • Operating Humidity : 0~95% ( non condensing)
  • Weight : 0.6 kg (±1%)
  • Dimensions :
    Magnet – (Hori)250mm,(Verti)220mm
    Armature – (?)55x(T)8 mm
