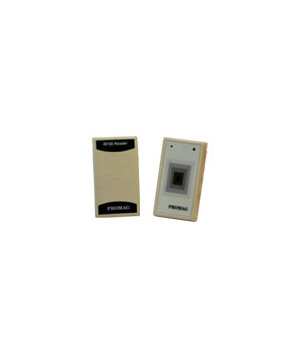

Reader GP 30

Ordering information:

  1. GP30 – Up to 30 cm read range, wall-mounting
  2. Power Requirements 5 ~ 12.5 V DC regulated, linear
  3. Interfaces Wiegand, MSR ABA Track2 or RS232
  4. Read Range GP30: Up to 20 cm at 5V with ISO card; up to 30 cm at 12.5V
  5. Frequency 125KHz, ASK
  6. Format 64 bits, Manchester coding
  7. Transponder Read only
  8. Dimensions: GP30 – 104 x 63 x 20 mm
  9. Temperature Range Readers: -25 ~ 65°C Transponders: -55 ~ 80°C
