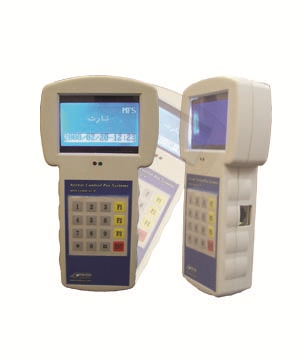

سیستم حضور و غیاب ، کنترل تردد و اعتباری مدل MHS12000ATCP

The newest and most complete MHS 12000 ATCP intelligent systems with varying capabilities for any traffic control is performed.Door and credit system with connectivity to all non-contact Rydrhay, Mayfr, RFID, fingerprint magnet, and barcode and can be locked to all electrical connections of the electric and magnet and is Shfty.Items used:· Time and Attendance· Door· Credit SystemLocation used:· Urban and inter-city train· Bus Company· Most cities and towns· The welfare and cultural and sports· Stores· Restaurants· Organizations and government agencies· Private companies and factories· Site security


Specifications:· Ability to connect to a non-contact Reader· Ability to connect to all the locks and electric and magnet Shfty· A separate relay for the Barrier to such person or car, doors, warning lights, alarm and CCTV cameras· Ability to connect to computers through Lan port and RS232.· Reporting of all traffic is possible· A 12-volt outlet and connect to the internal battery· Ability to transfer to portable devices easily· Ability to view on the LCD device in C Rkvrdakhrmvjvd static memory storage device· LED display has a success or error status· Have access menu mode on your portable device· Setting the time to relay commands to lock· Enable output relays separately· Ability to define different access levels to enter the menu system with 8-digit PIN· Has all the features of software and hardware, time and attendance card openerMode profile of the credit:· Ability to connect to the reader and writer Mayfr· Ability to format the various sectors Mayfr card· Ability to specify the amount charged for the cards Mayfr rials or tomans· Ability to specify the amount deducted from the card to show· Ability to read it after getting Mayfr card PIN· Ability to deduct the amount of the credit card number (eg 5) with a single card handling

Section

Content

LCD Display

Size

128 * 64 Dots LCD

Language

English, Farsi, Arabic

Authentication

Type

Password , RF card

Speed(valid cards)

Up to 4 seconds

Number of users

As valid or invalid, Max 64000

Number of Logs

Permanent

Max 32000 events

Static

30

Communication

TCP/IP

10 base-T Ethernet

RS-232C

57600 bps

Size

105 (W)*40 (L)*205(H) mm

Wight

450 g

Supported doors

Deadbolt / Strike / EM Lock / Auto door

3 Relay driver

Mount

Portable , wall mount (option)

Power

Adaptor

Input: AC 100 V ~ 240 V, 50/60 Hz

Output: DC 12 V, 1 A

Option

UPS (1.05Ah)

Temperature

Operating

-30 ~ 80 Centigrade
