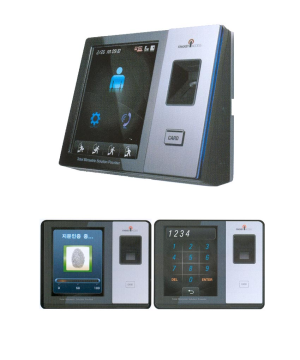

NAC-5000 is a cutting edge fingerprint access controller, which comes with NITGEN’S superior own algorithm, large LCD& touch screen. It is very convenient and innovative design, it’s a market leader in access control with high value. NITGEN’S fingerprint algorithm enables to high speed authentication, NAC-5000 is designed for large scale of security system using TCP/IP & wireless LA



CPU                                     32 bit / 620 MHz

Memory                               256 MB flash + 256 DRAM

Display                                 5.7 inch VGA Color / Touch-screen

Identification Time                Less than 1 sec.(4000 templates)

Template Capacity                100,000 events ( User : 50000 persons )

Log Capacity                        Max 500,000 events

Communication                    TCP/IP , RS-485 , Wireless LAN (optional)

PC Interface                         USB,RS-232

USB Memory slot                  Support

Camera                                Built-in

Identify faked fingerprint      Identifiable

Identify latent fingerprint      Identifiable

size                                    167 * 146 * 52 (W . H . D)




Access Server                                Network Communication/User authentication

Access manager                             Remote control of terminal and user control (user registration using fingerprint scanner)

Remote Monitor                             Terminal Monitoring (necessery for the expansion of remote controller)

DBMS                                            MS SQL 2000 higher/MS SQL Express 2005 higher ( Free/Small-sized )



Model :  NAC5000
