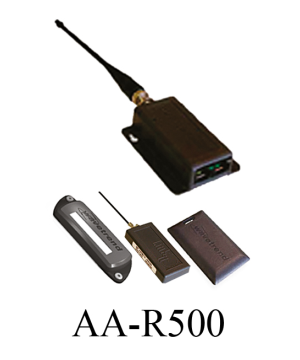

AA-R500 SP: Long Range Asset ID Reader

The AutoAccess™ Long Range Asset ID Readers are specifically designed for hands-free asset identification and tracking solutions. The AA-R500 Asset ID Readers communicate with AAID™ Tags to capture the presence, identification and location of assets, people, vehicles and alarm triggered events. They provide long range coverage for real-time asset loss prevention, inventory management, and personnel access control and mustering.

AAID™ Asset ID Readers communicate with Access Control Systems via a serial RS-232/RS-485 or TTL protocol for custom software solutions, and there are also special custom versions that are able to operate on any new or existing Ethernet LAN / WAN Network. Range adjustable antennas can be discretely hidden in walls, ceilings, and doorways to identify and track tag activity.

AAID™ Asset ID Readers can simultaneously read multiple AAID™ Tags at ranges up to 600 feet, and can also register and report the disappearance or unauthorized movement of individual tags. This is especially helpful in inventory management systems where a single AAID™ Reader can monitor a number of tagged assets and report to a Host Computer or Access Control System any change of status of a specific asset tag

FEATURES:

Simultaneous multiple-tag read capability
Low cost and easy to install
Omni-Directional and Directional antennas
Adjustable Tag read range .5’ to 600’
Serial or Ethernet LAN protocols
Secure Encrypted Transmission between Tags and Readers
Small, lightweight, with low power draw
AutoLocate™ Dynamic Tag Tracking
TamperDetect™ Theft Prevention

APPLICATIONS:

Laptop Computer Loss Prevention
Hospital Equipment and Patient Tracking
Real-Time Inventory Control
Employee Access Control and Tracking
Office Equipment Theft Prevention
School and College Asset Monitoring
Personnel Time and Attendance
Production and Process Control
Emergency Evacuation and Mustering
Lab and Test Equipment Tracking
Military Weapons Inventory Control
Automated Hands-Free Guard Tour

SPECIFICATIONS:

Frequency:
Rx Frequency		433.92 MHz
ERP		500uW

Electrical:
Power requirement		12VDC – 14.5VDC, ±30mA

Environmental:
Operational temperature		-40º F to +150º F
Storage temperature		-40º F to +158º F
Humidity		5% to 90% (non condensing)

Physical:
Size		3.3in x 1.6in x 0.7in
Weight		1.6 oz.
Color		Dark Grey
Type of material		PVC (ultrasonically sealed) IP 65 rating
Input/Output Connectors		Two RJ45 Sockets for CAT 5 cable

Hands-Free Long Range Asset Tags
The AutoAccess™ series of Radio Frequency Identification Tags permits hands-free employee access control and positive long range Tag identification for real-time asset loss prevention, inventory management, and personnel/asset tracking. Tags can be used to identify and track laptops, office machines, computer systems, tools, telephones, shop equipment, employees and visitors in office buildings, hospitals, retail stores, warehouses, industrial facilities, mines and military installations. Tag to Reader communication is encrypted to prevent Tag cloning, copying or emulation, making AAID™ Tags ideally suited for high security situations. Tags employ an anti-collision algorithm that allows multiple Tags to be simultaneously identified by a single reader, allowing employees to be matched to individual laptops or assets, shipping pallets to merchandise, assets to “authorized” locations, drivers to specific vehicles or forklifts, etc.

All AAID™ Tags come standard with the AutoLocate™ feature, making them ideal for real-time inventory management, and for tracking assets and personnel as they move throughout a facility. The exclusive AutoLocate™ feature can also detect thieves attempting to remove “tagged” assets from a monitored facility by hiding them in a metal container, such as a toolbox or aluminum briefcase. All AAID™ Tags also come standard with sensors that can instantly detect that a Tag has been removed from an “authorized” asset and send an immediate alarm to an access control or security monitoring system.

AAID™ Tags are powered by an internal Lithium battery and transmit at a custom pre-set time interval. This breakthrough technology allows the Tags to operate continuously for five to ten years. An on-board battery life counter monitors Tag activity and can transmit it’s condition every time a Tag is read. AAID™ Tags are available in two sizes with various mounting devices for assets and vehicles, or can be worn as personnel identification badges. Depending on the application and Tag used, AAID™ Tags can be easily identified by range adjustable “fixed location” or “portable hand-held” readers from .5 to 450 feet away and at speeds up to 300 MPH.

FEATURES:

Reliable battery life - Low power consumption – Tags are guaranteed for up to 3 years.*
Secure Encrypted communication between tags and readers.
Anti-Collision algorithm allows identification of multiple tags simultaneously.
Tags can trigger alarm reports if removed from assets or vehicles.
Adjustable tag read range .5’ to 450’ or more.
AutoLocate™ capability is standard in all tags.
Optional tag programmer is available to custom configure tag numbers, transmission repetition rate, alarm functions, etc.

SPECIFICATIONS:

Environmental:
Operational temperature	-40º F to +150º F
Storage temperature	-40º F to +158º F
Humidity	5% to 90% (non condensing)

Physical:
Size	2.4in x 1.2in x 0.4in (AA-T100 Covert Tag)
	3.4in x 2.1in x 0.2in (AA-T200 Windshield / Personnel Tag)
Weight	0.53oz.
Color	Dark Grey
Type of material	Ultrasonically sealed PVC - IP 65 rating
Input/Output Connectors	Two RJ45 Sockets for CAT 5 cable

RF Specifications:
Frequency	433.92 MHz
Output Power	300 microwatts

Range:
AA-T200 Windshield / Personnel Tag with AutoLocate™	Up to 450 feet**
AA-T100 Covert Tag with External Antenna and AutoLocate™	Up to 450 feet**
AA-T800 Metal Mount Tag with AutoLocate™	Up to 250 feet**
