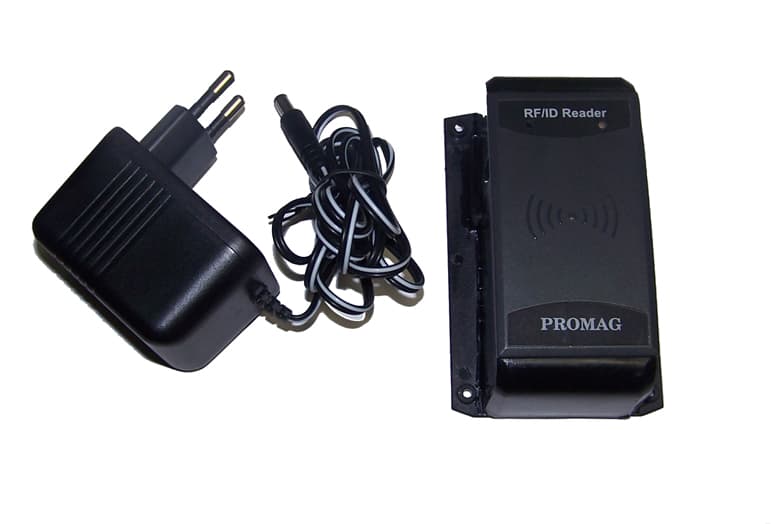

• Contactless card access controller (standalone/non-PC connected), Model MHS 5100C

• Suitable for installation on all types of doors (wood, metal, glass), elevators, and safes

• Card reader can be concealed behind drywall or stone walls to prevent unauthorized system access

• Compatible with all electric and magnetic locks; includes an exit button output

• Can be used with either keypad or card entry methods independently

• Card or code addition and deletion performed via Master card or Master code (Add/Del function)

• 2-year warranty and 10-year support

• Manufactured in Iran

• Card reader dimensions: 78 x 43 x 15 mm

• Made in Taiwan

• Power Requirements 5 ~ 12.5 V DC regulated, linear

• Interfaces Wiegand, MSR ABA Track2 or RS232

• Read Range 􀂾 GP8: Up to 7 cm without external

• antenna with ISO card; up to 30 cm

• with proper external antenna

• 􀂾 GP20: Up to 13 cm at 5V with ISO card;

• up to 20 cm at 12.5V

• 􀂾 GP30: Up to 20 cm at 5V with ISO card;

• up to 30 cm at 12.5V

• Frequency 125KHz, ASK

• Format 64 bits, Manchester coding

• Transponder Read only

• Dimensions GP8 – 41 x 24 x 10 mm

• GP20 – 78 x 43 x 15 mm

• GP30 – 104 x 63 x 20 mm

• Temperature Range Readers: -25 ~ 65°C

• Transponders: -55 ~ 80°C
